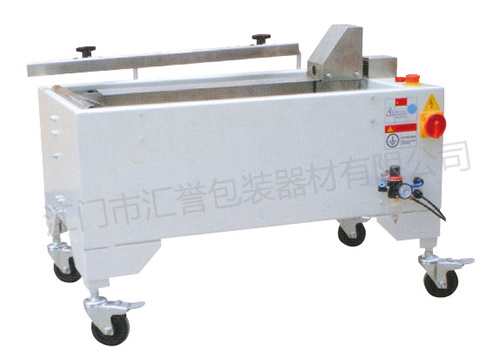

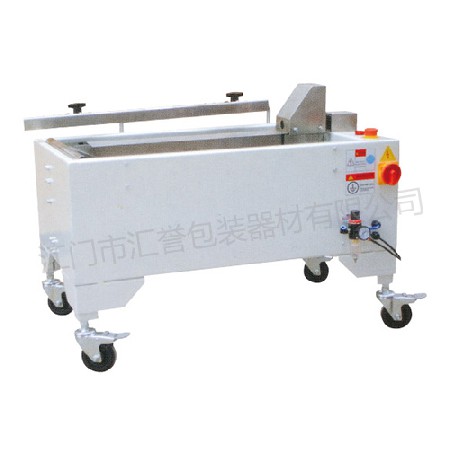

HY-40C semi-automatic folding machine
2020-12-11 1449
Product Features:
Using technology for manufacturing and selecting components and electrical parts.
Adjust the width and height manually according to the size of the cardboard box.
The folding bottom sealing box is integrated, with a small volume, easy operation, and strong applicability.
※ Automatic bottom folding, manual packing, automatic lid folding, top and bottom sealing.
| Main technical parameters | |
| Model No | HY-40S |
| Packaging speed | 0-20m/min |
| Maximum packaging size | L500*W500*H500mm |
| Minimum packaging size | L150*W150*H150mm |
| Power Supply | 1f,220V/110V,50/60HZ |
| Power consumption | 200W |
| air source | 6KG |
| Applicable tape | W48mmThe60mmThe75mm |
| Machine size | L2080*W840*H1500mm |
| machine weight | 265KG |
-
