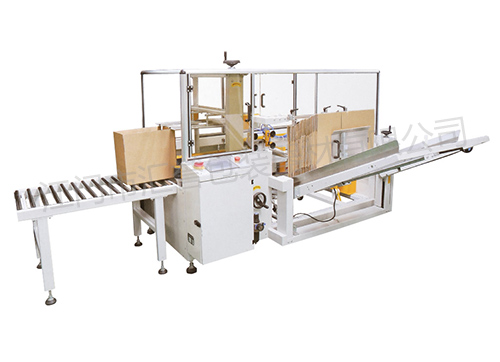

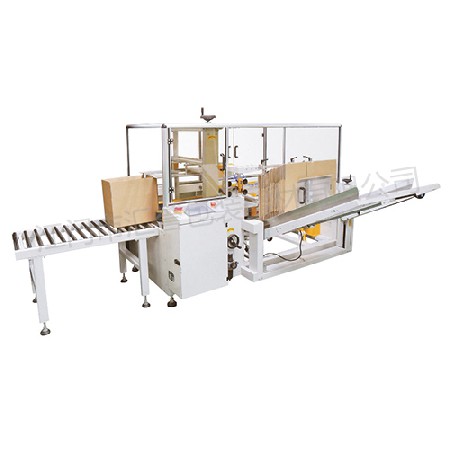

HY-40 Carton Automatic Forming and Sealing Machine

2020-12-11 1368

Product Features:

  • Adopting technological manufacturing and selecting parts, electrical components, and pneumatic components;

  • The cardboard is stored in a certain way and can be replenished at any time without stopping the machine;

  • Suitable for packaging the same size of cardboard box at the same time. If you need to change the size of the cardboard box, you can manually adjust it, which takes 1-2 minutes;

  • Reasonable design, synchronous suction molding, and simultaneous molding of folding and sealing at once;

  • Lightweight in size, precise and durable in mechanical performance, vibration free during operation, stable in operation, long lifespan, and high efficiency;

  • Install a transparent organic glass protective cover, which automatically stops when opening the door to avoid operational accidents;

  • It can be operated independently or used in conjunction with automated packaging assembly lines.



Main technical parameters
Model NoHY-40H18HY-40
Unpacking ability18Box/minute 12Box/minute
Temporary storage capacity of cardboard boxes100pcs(1000mm)100pcs(1000mm)
Carton SizeL:200-400mm  W150-360mm H:100-350mm L:250-450mm  W150-400mm H:100-400mm
Using electricity220V  200W220V  200W
Necessary air pressure6kg/c 6kg/c
Air consumption450NL/ min450NL/ min
Machine sizeL2400*W2050*H1450mmL2000*W1900*H1450mm
Mechanical weight450kg  450kg
Tape size48mmThe60mmThe75mm  (Smaller specifications cannot exist simultaneously) 48mmThe60mmThe75mm  (Smaller specifications cannot exist simultaneously)
